Phoenix SP1B07/SP 1 B 07 Air Spring Suspension M8 Bolts Single Convoluted Air Bags
Product Description:
The AIRSUSTECH Industrial Air Springs feature a stroke length of 65mm, providing ample travel and ensuring maximum comfort for your vehicle. With a maximum height of 115mm, these bellows air bags are the perfect addition to your air suspension system, providing the necessary support and stability to keep your vehicle running smoothly.
Whether you're hauling heavy loads or simply looking for a more comfortable ride, the SP1B07 Air Springs are the perfect choice. With their durable construction, wide operating temperature range, and impressive stroke length, these air vibration bags are sure to provide the performance and reliability you need.
SP1B07 Features:
| Air Fitting | G 1/4 |
| Stroke Lenght | 65 mm |
| Bellows Type | Single Convolution |
| Max Expanded Height | 115 mm |
| Compressed Height | 50 mm |
| Upper Cover Plate Diameter | 135 mm |
| Lower Cover Plate Diameter | 135 mm |
| Bolts Distance | 53 mm |
| Distance Gas Hole Between Nut | 26 mm |
| Top/ Bottom Plate Bolts | 2×M8×1.25 |
Cross References:
Phoenix: SP 1 B 07, SP1 B 07, SP1B 07, SP1B07
These OEM AIRSUSTECH can offer as the same size:
| SP 1 B 04 | SP 2 B 05 R-a | 2B 07 R | 2B07R |
| SP 1 B 05 | SP 2 B 07 R | 2B 12 R | 2B12R |
| SP 1 B 07 | SP 2 B 12 R | 2B 12 R-3 | 2B12R-3 |
| SP 1 B 12 | SP 2 B 12 R-1 | 2B 15 R | 2B15R |
| SP 1 B 22 | SP 2 B 12 R-2 | 2B 20 R | 2B20R |
| SP 1 B 34 | SP 2 B 12 R-3 | 2B 20 R-9 | 2B20R-9 |
| SP1B04 | SP 2 B 22 R | 2B 21 R | 2B21R |
| SP1B05 | SP 2 B 34 R | 2B 21 R-9 | 2B21R-9 |
| SP1B07 | SP 2 B 34 R-b | 2B 22 R | 2B22R |
| SP1B12 | SP2B05R-a | 2B 22 R a-9 | 2B21Ra-9 |
| SP1B22 | SP2B07R | 2B 34 R | 2B34R |
| SP1B34 | SP2B12R | 2B 34 R-b | 2B34R-b |
| | SP2B12R-1 | 2B 49 R-a | 2B34R-a |
| | SP2B12R-2 | 2B 49 R-b | 2B49R-a |
| | SP2B12R-3 | 2B 85 R | 2B49R-b |
| | SP2B22R | 2B 85 R-a | 2B85R |
| | SP2B34R | | 2B85R-a |
| | SP2B34R-b | | |
AIRSUSTECH SP1B07 Core Competitiveness:
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.
Attention Must be Paid When Installation the AIRSUSTECH Air Springs:
In designs that use air springs, care must be taken to ensure that no sharp edges are in contact with the springs of the spring element. This must verify maximum expansion and zero pressure operation, particularly for leaf and sleeve rolled leaf springs, which is a reduction in surface pressure drop in the gap between the meniscus and the piston support. The outer envelope of the air spring must clear the maximum air spring of 2 inches in diameter to allow for normal growth and misalignment.

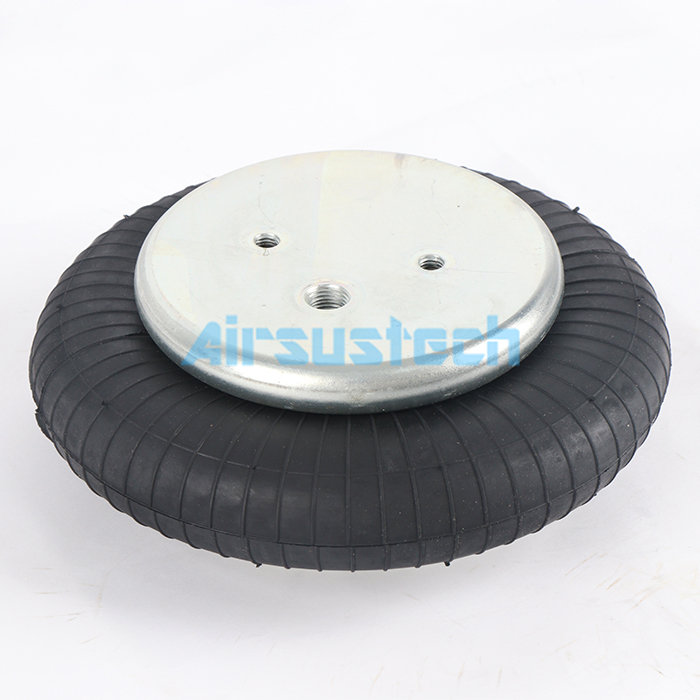

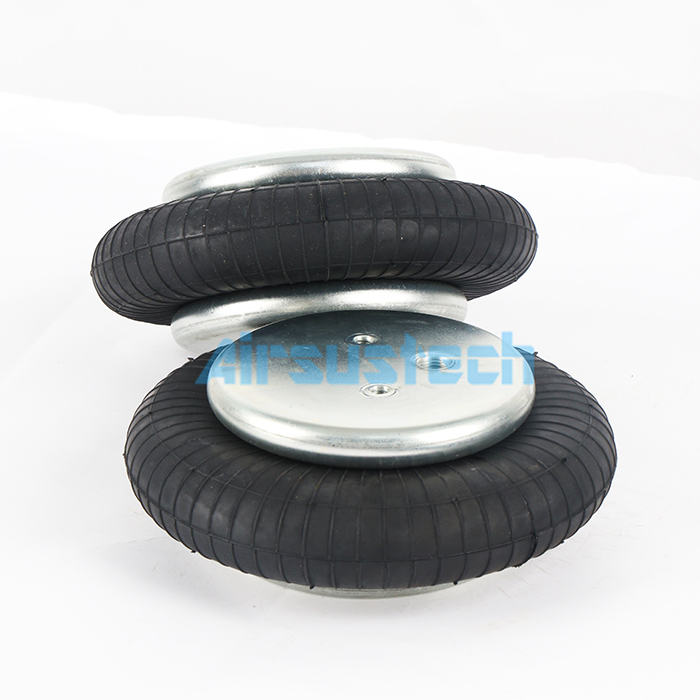

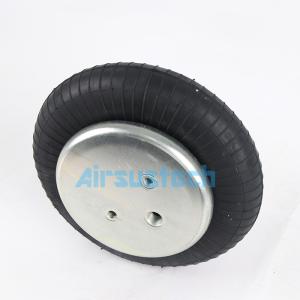

The Related Pictures of SP1B07:
