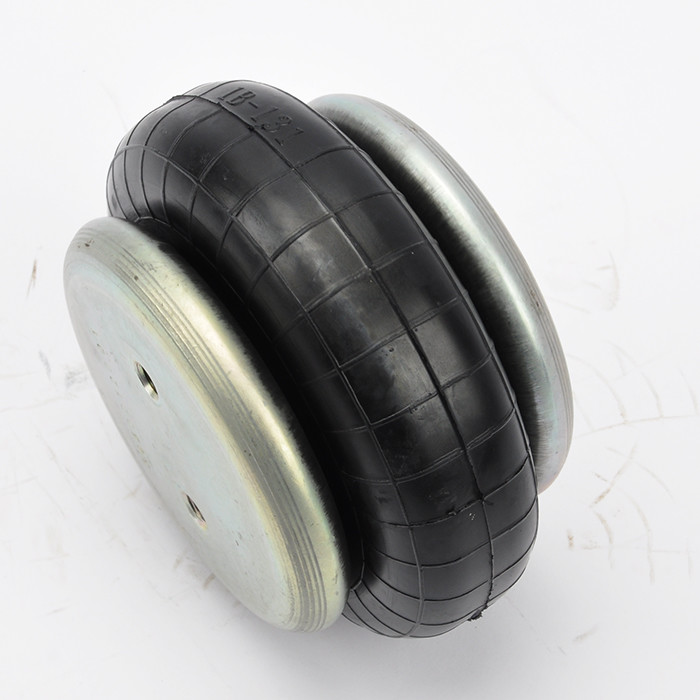

W01-358-7742 Firestone Air Spring Style 131 Rubber Bellows W01-358-0131 For Cows Milking System
AIRSUSTECH 1B7742 Cross OEM Original Equipment Manufacturer:
AIRSUSTECH Part Number:1B7742
Firestone Part Number: W01-358-7742
Firestone Part Number: W01-358-7742,
Firestone Part Number: W013587742,
Firestone Part Number: WO1-358-7742,
Firestone Part Number: WO13587742
AIRSUSTECH 1B7742 Technical Parameters:
| |
| Top Cover Plate Diameter | 115mm |
| Bottom Cover Plate Diameter | 115mm |
| Screw Center Distance | 44.5mm |
| Distance Gas Hole Between Nut | 22.25 mm |
| Gas Hole | 1/4NPTF |
| Screw (Nut) Tooth | 2pcsX3/8-16UNC |
| Rubber Bellows Diameter | Natural Φ145 mm |
| The Height | Natural 90 mm |
AIRSUSTECH 1B7742 Technical Parameters in inch:
Material
2-layer standard line
End cap details
Bead plate type
1
Blind nut center (inch)
1.75
Air isolator
Design height
3.5
Load (at design height): 40 psig (lbs)
550
Load (at design height): 60 psig (lbs)
850
Load (at design height): 80 psig (lbs)
1170
Natural frequency (@80 psig) (cpm)
181
Isolation percentage at mandatory frequency 400 CPM
74.4
Isolation percentage at mandatory frequency 800 CPM
94.6
Isolation percentage at mandatory frequency 1500 CPM
98.5
Maximum diameter @ 100 PSIG (inch)
6.5
Maximum height (inch)
4.1
Maximum stroke (inch)
2.1
Minimum usable height (inches)
2
Force at 1 inch (lb) stroke @ 80PSI
1350
Force at maximum stroke @ 80PSI (pounds)
850
AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags product description:
The air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags must be used to absorb the force
• Before disassembling the air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags, the internal air must be released to prevent accidents and personal injury.
• During operation, the rubber air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags shall not be in contact with other parts
