AIRSUSTECH1B8X4 Cross other OEM:
| AIRSUSTECH: 1B8X4 | AIRSUSTECH: Style 8X4 |
| Air Spring STANDARD Code 93113 | Style 110 |
| Connection P1 | TORPRESS MODEL 110 |
| Goodyear Part Number:1B8-55 | Firestone Style 11 |
| Goodyear Part Number:1B8 55 | Contitech:FS120-1 |
| Goodyear Part Number:1B8 55 | Contitech:FS120 1 |
| Contitech Part Number:FS 120-10 C | Contitech:FS1201 |
| Contitech Part Number:FS120-10 C | Firestone Part Number:W01-358-756 |
| Contitech Part Number:FS 120 10 C | Firestone Part Number:W01 358 756 |
| Continental Part Number:FS 120-10 C | Firestone Part Number:W01358756 |
| Continental Part Number:FS120-10 C | Firestone Rubber bellows only:W01-358-013 |
| Continental Part Number:FS 120 10 C | Firestone Rubber bellows only:W01 358 013 |
| Enidine Part Number:YI1-B8-550 | Firestone Rubber bellows only:W01358013 |
| Enidine Part Number:YI1B8550 | Enidine Part Number:YI1 B8-550 |

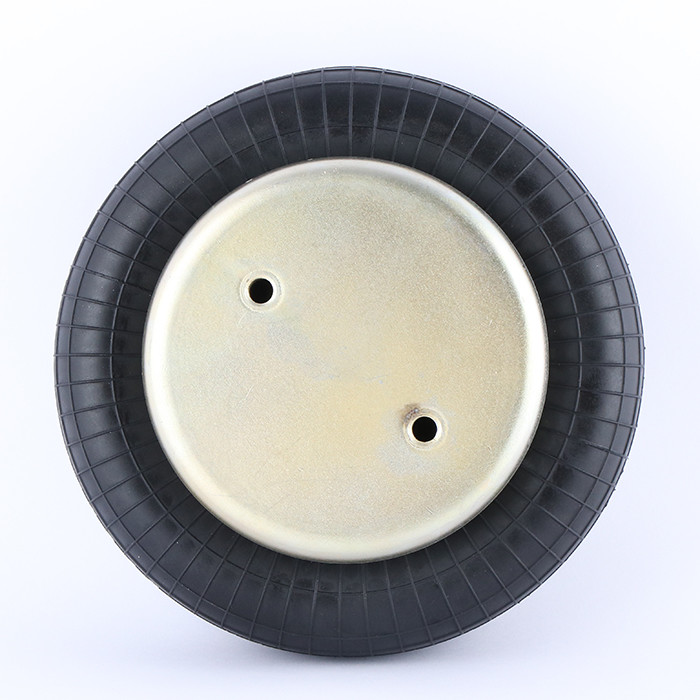

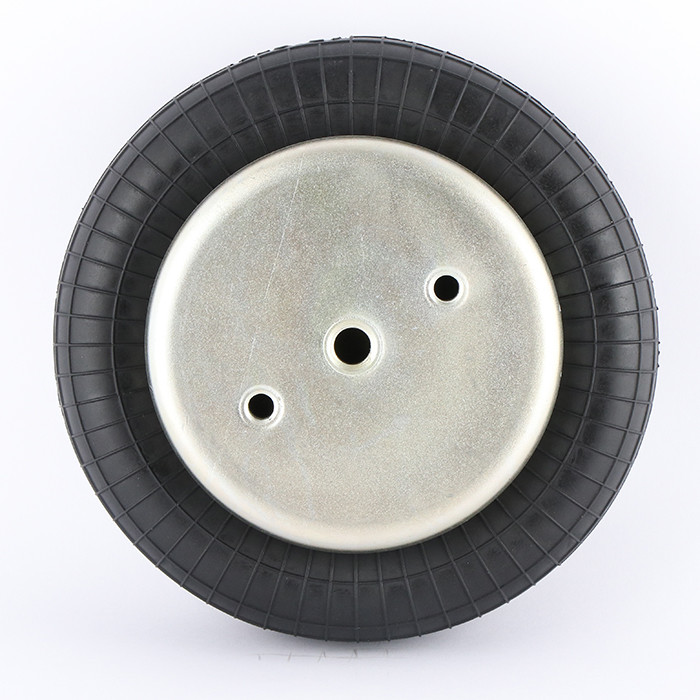

Product Description of 1B8X4 Refer To Air Spring STANDARD Code 93113
Top Cover Plate Diameter: 114.5 mm
Bottom Piston Number: 44.5 mm
Bottom Cover Plate Diameter: 114.5 mm
Screw Center Distance : 44.5 mm
Distance Gas Hole Between Nut: 35 mm
Air inlet:1/4” NPT F
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Rubber Bellows MAX Diameter(Maximum Diameter): 230 mm
Rubber Bellows Natural Diameter 210 mm
The Working Stroke : MAX 151 mm to MIN 51 mm
Compressed Height: 100 mm
Technical Data
- Min. pressure - 0 psi
- Return force to min. height - <45LBF/200N
- Overall Weight - 2.4KG
- Min. Design Height - 50MM
- Inst.Space Required - 240MM
- Max. Stroke - 90MM
Technical performance parameter list of AIRSUSTECH 1B8X4 air spring:
Bearing
load
Power
(kg) | Inflation pressure | 0.2MPa | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | 0.7MPa | 0.8MPa | 0.7MPa
Volume(dm³) |
| Installation height | | | | | | | |
| 55(mm) | 433 | 664 | 897 | 1131 | 1354 | 1585 | 1822 | 1.11 |
| 78(mm) | 396 | 598 | 803 | 1015 | 1236 | 1441 | 1647 | 1.34 |
| 101(mm) | 314 | 471 | 646 | 820 | 996 | 1175 | 1321 | 1.47 |
| 124(mm) | 208 | 318 | 434 | 555 | 675 | 798 | 920 | 1.79 |
| 130(mm) | 167 | 258 | 348 | 438 | 535 | 636 | 733 | 1.86 |
| 147(mm) | 56 | 96 | 133 | 179 | 226 | 274 | 331 | 2.04 |
| 149(mm) | 19 | 41 | 64 | 93 | 126 | 164 | 208 | 2.08 |
| 155(mm) | 2 | 10 | 20 | 41 | 51 | 80 | 100 | 2.15 |
| Stiffness and frequency at design height | Vertical stiffness(Kg/cm) | 132 | 170 | 182 | 203 | 230 | 268 | 285 | |
| Stiffness and frequency at design height | Natural frequency Hz | 4.45 | 4.06 | 3.62 | 3.4 | 3.28 | 3.25 | 3.12 | |
| Stiffness and frequency at design height | Natural frequency cpm | 267 | 244 | 217 | 204 | 197 | 195 | 187 | |
PURCHASE ORDER DATA
| Type | Air Inlet | Order No. | |
| | | |
| with crimped plates | 1/4 NPT 0 in. excentrical | |
